Product Features

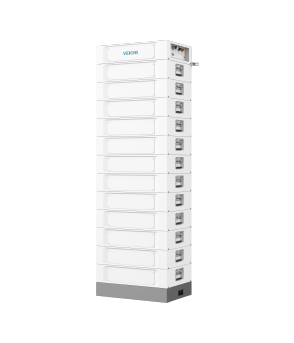

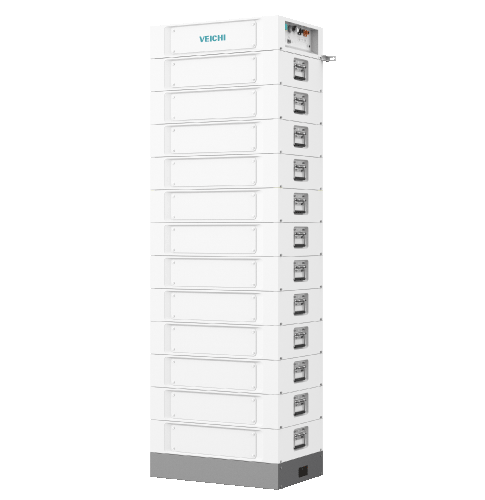

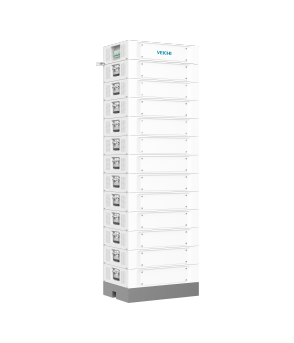

VCHB-61.4K-STF Series 15KWh~737KWh HV Lithium Battery Overview
The VEICHI VCHB-61.4K-STF series high-voltage lithium battery features a sleek design for residential and small commercial use. Modular, stackable plug-and-play design eases installation and maintenance. Max stack: 12 batteries; 12 clusters in parallel for 15-737kWh capacity. LFP cells, IP65 rating, and intelligent fire suppression ensure safety. Max charge/discharge current 100A delivers robust power for homes.
High-Performance Lithium Battery
- LFP battery with stackable design for convenient and aesthetically pleasing installation;
- Supports up to 12 battery clusters in parallel, battery capacity 15.36kWh ~ 737.28kWh.
Safety Guarded, Worry-Free Us
- Multiple certifications, suitable for use in many countries;
- Intelligent fire suppression system, detects and extinguishes fire within 5 seconds, ensuring electrical safety.
Technical Specifications
...
...
...
...
...
...
Product Model
VCHB-61.4K-STF VCHB-61.4K-STF VCHB-61.4K-STF VCHB-61.4K-STF VCHB-61.4K-STF VCHB-61.4K-STF VCHB-61.4K-STF
Battery Type
LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4
Nominal Battery Energy
15.36 kWh 35.84 kWh 40.96 kWh 46.08 kWh 51.2 kWh 56.32 kWh 61.44 kWh
Cycle Life
≥8000 cycles / 10 Years ≥8000 cycles / 10 Years ≥8000 cycles / 10 Years ≥8000 cycles / 10 Years ≥8000 cycles / 10 Years ≥8000 cycles / 10 Years ≥8000 cycles / 10 Years
Protection Level
IP20 IP20 IP20 IP20 IP20 IP20 IP20
Number of Layers
3 7 8 9 10 11 12
Net Weight(kg)
163 351 398 445 492 539 586
Dimension(mm)
590*390*632 590*390*1164 590*390*1297 590*390*1430 590*390*1563 590*390*1696 590*390*1829
