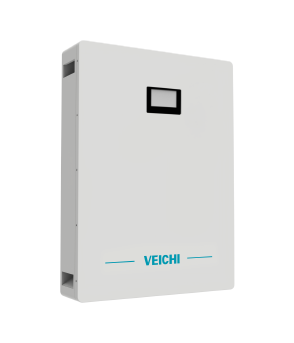

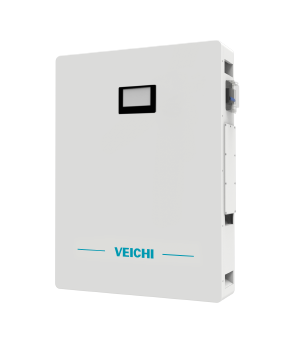

VCLB-10K-W01 Series 5.12KWh~204.8kWh LV Lithium Battery Overview
The VEICHI VCLB-10K-W01 series battery is designed for residential and small commercial use, compatible with VEICHI inverters. Using high-performance LFP cells, max charge/discharge current is 200A. IP65 rated with intelligent BMS and built-in fire suppression for safety. Flexible mounting (floor/ wall). Supports up to 20 parallel modules for 204.8kWh max capacity.
High-Performance Lithium Battery
- LFP battery with long service life, over 6,000 charge-discharge cycles;
- Supports up to 20 units in parallel, battery capacity 5.12kWh ~ 204.8kWh.
Safety Guarded, Worry-Free Use
- Multiple certifications, suitable for use in many countries;
- IP65 protection rating, built-in aerosol fire suppression system, ensuring electrical safety.
Technical Specifications
...
...
...
Product Model
VCLB-10K-W01
Battery Type
LiFePO4
Nominal Battery Energy
10240Wh
Life Cycle
6000 times @80%DOD
Protection Level
IP65
Scalable
Up to 20 units
Dimension(mm)
800*590*142
Weight(kg)
96.5
