Product Features

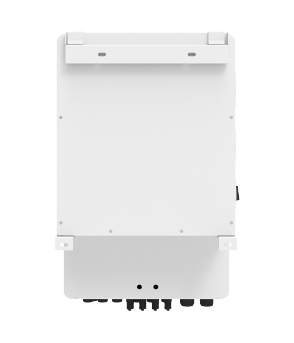

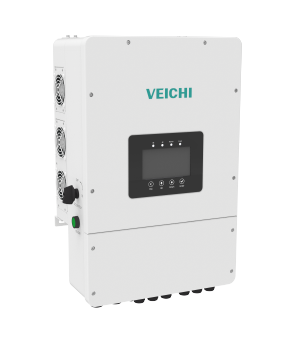

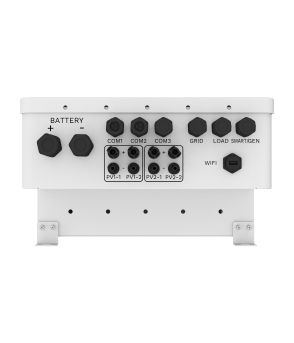

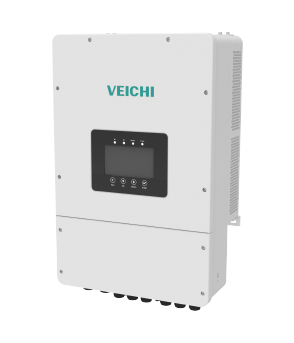

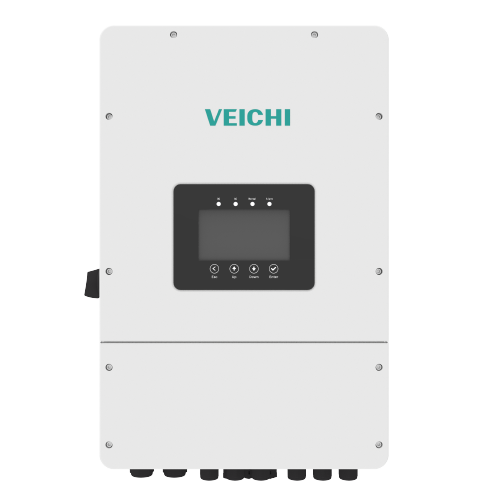

VLS-6K-12K-H1 Series 6kW-12kW Hybrid Solar Inverter Overview
The VEICHI VLS-6K-12K-H1 Series single-phase low-voltage hybrid inverters, with a power range of 6–12 kW, meet the electricity demands of most households. Featuring 2 MPPT tracks, each with a maximum input current of 28A, they are compatible with most high-power panels on the market. Combined with a 160% PV oversizing ratio, they capture more solar energy and improve photovoltaic utilization. With a low startup voltage of 80V, they deliver longer power generation hours. The inverter delivers 200% peak EPS power for 60 seconds, easily handling loads such as air conditioners and refrigerators. Rated IP65 for dust and water resistance, it comes with Type II lightning protection on both AC and DC sides. With UPS-level transfer time and grid-to-off-grid switching in under 4ms, it ensures power safety. Support for parallel connection of up to 10 units allows flexible expansion.
High Performance, High Returns
- 160% PV oversizing captures more solar energy and improves PV utilization;
- 2 MPPT tracks, each with a max current of 28A, compatible with most high-power panels on the market;
- Delivers 200% peak EPS power for 60 seconds, easily handling loads like air conditioners and refrigerators;
- Low startup voltage of 80V enables faster startup and longer power generation time.
Excellent Design, Wide Applicability
- Supports parallel connection of up to 10 units for flexible expansion according to customer needs;
- IP65 dust and water resistance rating, Type II lightning protection on both AC and DC sides for enhanced safety;
- UPS-level transfer time, grid-to-off-grid switching in less than 4ms to ensure uninterrupted power for critical loads;
- Intelligent load management supports remote monitoring and parameter setting via APP.
Technical Specifications
