Product Features

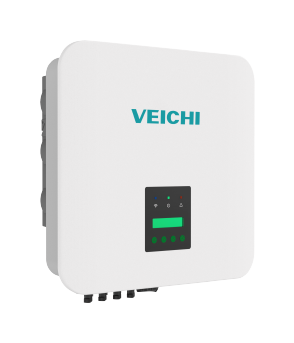

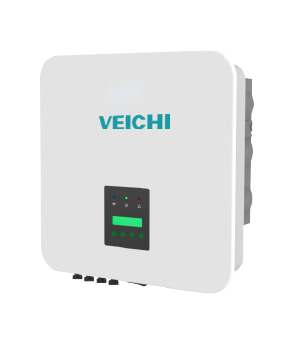

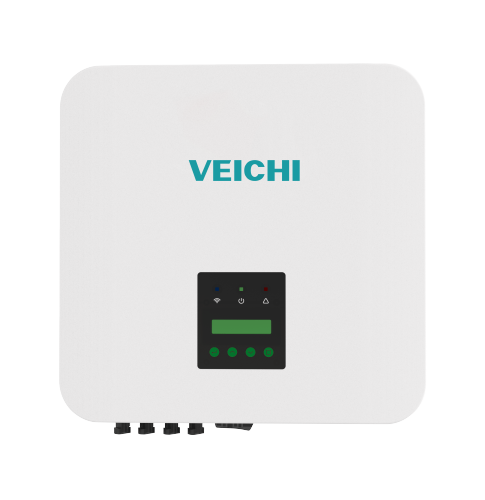

VSS-6K-10K-M3 Series On-grid Single Phase Inverter Overview
The VEICHI VSS-6K-10K-M3 series single-phase grid-tie inverters, offered in five power ratings from 6kW to 10kW, fully meet customer requirements. High-performance internal components minimize energy loss, achieving up to 98.8% maximum efficiency. With 3 MPPT trackers, a maximum PV input current of 22A, and a low startup voltage of 30V, they are compatible with high-power PV modules, enabling faster power generation and greater returns. Communication options include Wi-Fi, 4G, GPRS, and Bluetooth for remote control. The IP66-rated, lightweight, and compact design ensures easy installation indoors or outdoors, empowering a smart and efficient lifestyle.
High-Performance On-Grid Inverter
- Maximum MPPT current: 36A, peak efficiency up to 98.6%, delivering higher green energy yield;
- Three MPPTs channels with precise MPPT algorithm for real-time maximum power point tracking;
- Adjustable AC output voltage range 180V–300V, compatible with most grid specifications;
- Low startup voltage as low as 30V, extending daily power generation hours;
- Wide MPPT voltage range, offering strong anti-shading capability.
Multiple Features for Worry-Free Operation
- IP66 protection rating, suitable for both indoor and outdoor installation;
- Supports multiple communication options: Wi‑Fi, 4G, Bluetooth, RS485 for real-time monitoring;
- Lightweight and compact design for easy installation;
- Multiple grid‑tie certifications enable deployment in countries worldwide;
- Low-noise design with noise level below 20 dB for unobtrusive operation.
Technical Specifications
...
...
...
Product Model
VSS-6K-M3 VSS-7K-M3 VSS-8K-M3 VSS-9K-M3 VSS-10K-M3
Max Input Voltage(V)
600 600 600 600 600
Max Input Current(A)
18/18/18 18/18/18 18/18/18 18/18/36 18/18/36
MPPT Number
3 3 3 3 3
Strings Number Per MPPT
1/1/1 1/1/1 1/1/1 1/1/2 1/1/2
Rated Grid Voltage(V) (L/N/PE)
220/230/240/180~300 220/230/240/180~300 220/230/240/180~300 220/230/240/180~300 220/230/240/180~300
Start-up/Min Input Voltage(V)
40/30 40/30 40/30 40/30 40/30
MPPT Voltage Range(V)
80~580 80~580 80~580 80~580 80~580
