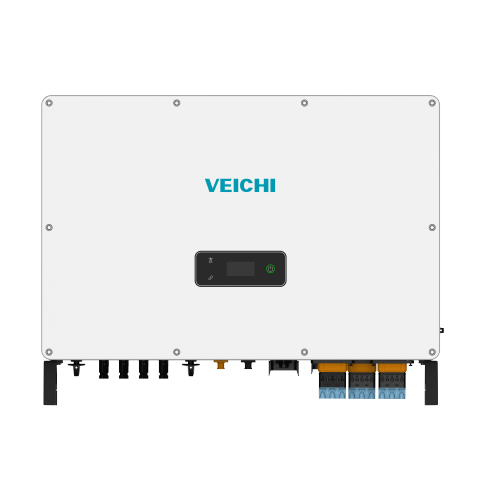

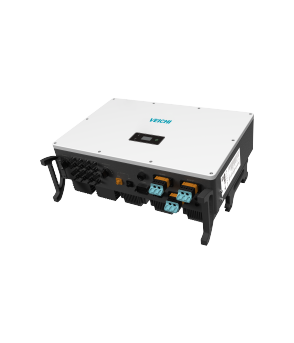

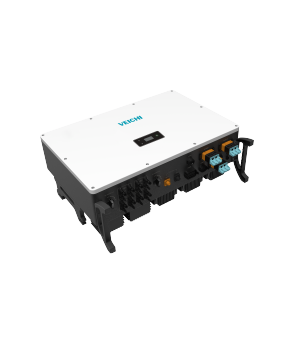

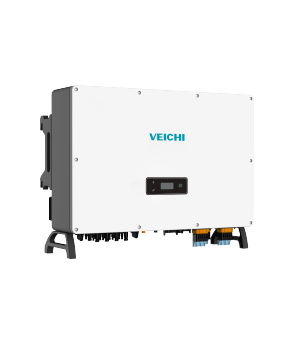

VHT-30K-50K-100-H Series 30kW-50kW Hybrid Solar Inverter Overview
The VEICHI VHT-30K-50K-100-H series three-phase high-voltage hybrid inverter, available in 30kW and 50kW, supports multi-unit parallel operation for small/medium commercial and residential use. With 4 MPPT trackers (30A max. current), it matches high-power modules. Multiple communication methods and remote OTA updates are supported. It enables peak shaving to reduce costs and offers high energy autonomy. Compatible with various battery brands, it features a 100A max battery current.
High Performance, High Returns
- 1.5x PV overload capability, can be paired with more solar panels to increase green energy returns;
- Maximum charge/discharge current of 100A for worry-free operation;
- UPS-level on/off-grid switching capability ensures continuous power supply;
- Supports 120% overload for 60 seconds, suitable for high-power loads;
- Maximum MPPT input current of 30A for greater green energy capture.
Excellent Design, Wide Applicability
- 4 MPPT trackers, voltage range 200V~850V, adaptable to various application scenarios;
- IP65 protection rating for indoor/outdoor installation;
- Low-noise design, operating sound less than 50dB for a comfortable experience;
- Supports up to 10 units in parallel to meet customer demands.
Technical Specifications
...
...
...
...
Product Model
VHT-30K-100-H VHT-50K-100-H
Max Input Power(kW)
45 75
Start-up Voltage(V)
135 135
Max.DC Input Voltage(V)
1000 1000
Rated DC Input Voltage(V)
620 620
MPPT Voltage Range(V)
200-850 200-850
No. of MPP Trackers
4 4
No. of DC Inputs Per MPPT
2+2+2+2 2+2+2+2
Battery Type
Lead-acid or Li-Ion (BMS) Lead-acid or Li-Ion (BMS)
Battery Voltage Range(V)
135-750 135-750
Rated Output Power(kW)
30 50
Max. Output Apparent Power(kVA)
33 55
UPS Switching Time(ms)
＜20 ＜20
