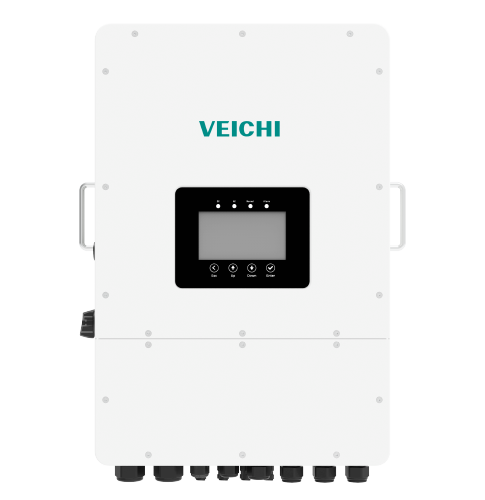

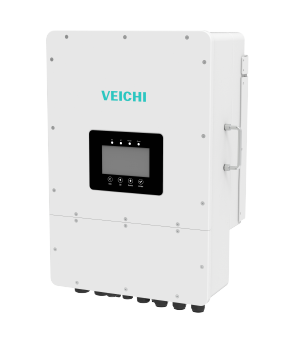

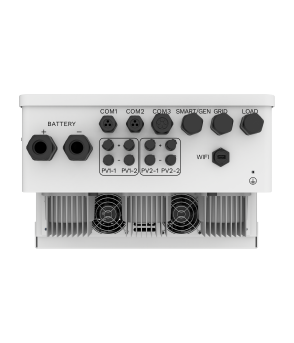

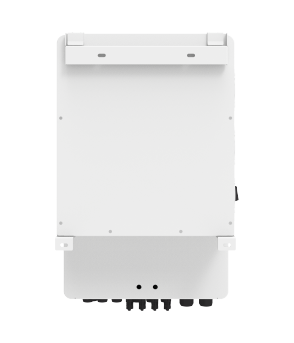

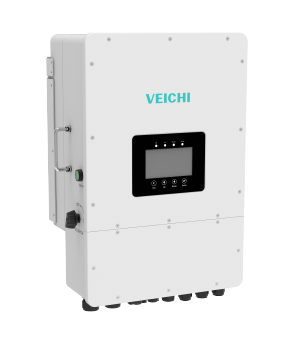

VEICHI VLT-10K-15K-H1 10-15kW Three Phase Hybrid Inverter

Product Features

Flexible Applications

Parallel operation up to 10 units，compatible for use with diesel generators.

Smart Control & Monitoring

Features an LCD screen for control and supports cloud-based monitoring via a mobile app.

High Performance

160% PV oversizing，delivers 200% peak EPS power for 60 seconds，Max. MPPT Current 30A，UPS-level switchover time ＜6ms.

Safety & Reliability

Features battery terminal temperature detection, IP65 protection rating, Type II SPDs on AC and DC sides, AFCI optional.

VLT-10K-15K-H1 Series 10kW-15kW Hybrid Solar Inverter Overview

The VEICHI VLT-10K-15K-H1 Series three-phase low-voltage hybrid inverters, with a power range of 10–15 kW, meet the electricity demands of most households. Featuring 2 MPPT tracks, each with a maximum input current of 30A, they are compatible with most high-power panels on the market. Combined with a 1.6× PV oversizing ratio, they capture more solar energy and improve photovoltaic utilization. A maximum charge/discharge current of 290A meets household electricity needs. The inverter delivers 200% peak EPS power for 60 seconds, easily handling loads such as air conditioners and refrigerators. Rated IP65 for dust and water resistance, it comes with Type II lightning protection on both AC and DC sides. With UPS-level transfer time and grid-to-off-grid switching in under 6ms, it ensures power safety. Support for parallel connection of up to 10 units allows flexible expansion.

High Performance, High Returns

160% PV oversizing captures more solar energy and improves PV utilization;
2 MPPT tracks, each with a max current of 30A, compatible with most high-power panels on the market;
Delivers 200% peak EPS power for 60 seconds, easily handling loads like air conditioners and refrigerators;
Maximum charge/discharge current of 290A meets household electricity demands.

Excellent Design, Wide Applicability

Supports parallel connection of up to 10 units for flexible expansion according to customer needs;
IP65 dust and water resistance rating, Type II lightning protection on both AC and DC sides for enhanced safety;
UPS-level transfer time, grid-to-off-grid switching in less than 6ms to ensure uninterrupted power for critical loads;
Intelligent load management supports remote monitoring and parameter setting via APP.
