Product Features

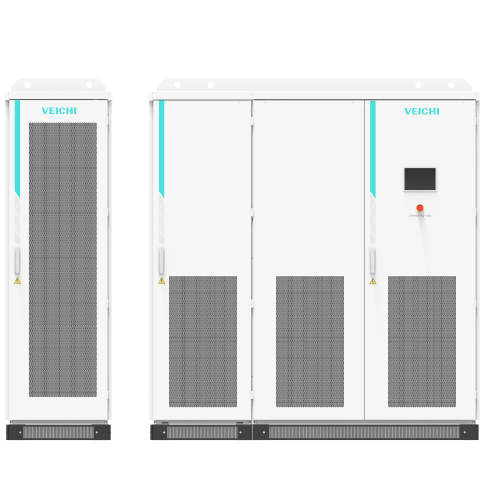

VPS01-GE0A Series 200kW-1000kW Hybrid Solar Inverter Overview
The new VEICHI VPS01-GE0A series three-phase high-voltage hybrid inverter (200kW~1MW) supports multi-unit parallel operation for diverse needs from small plants to large industrial parks. Its modular, highly integrated design eases maintenance. The built-in isolation transformer offers strong impact resistance and 100% three-phase unbalanced load support. UPS-level on/off-grid switching ensures uninterrupted operation. Diesel generator compatibility enables integrated energy use. Features include anti-reverse power flow, black start, and VF/PQ/VSG control modes for robust grid support and operational continuity.
High Performance, High Returns
- 1.1x three-phase unbalanced load capability with strong anti-interference performance;
- MPPT modular design, configurable as needed;
- UPS-level on/off-grid switching capability ensures continuous power supply for factories;
- Supports various control strategies such as VF, PQ, VSG for robust grid;
- Multiple current protection mechanisms comprehensively ensure industrial-grade operational safety.
Excellent Design, Wide Applicability
- Supports simultaneous connection of PV, grid, diesel generator, battery, and loads;
- Modular design, compact structure, easy installation and later maintenance;
- Supports multi-unit parallel expansion, highly scalable to meet project needs;
- ARM+FPGA dual-chip control architecture ensures fast dynamic response and strong stability of the energy storage system.
Technical Specifications
...
Product Model
VPS01-0200-GE0A VPS01-0300-GE0A VPS01-0500-GE0A VPS01-0800-GE0A VPS01-1000-GE0A
Max Output Power(kW)
220 330 550 880 1100
Rated Power(kW)
200 300 500 800 1000
Rated Voltage(V)
400 400 400 400 400
Max. PV Voltage(V)
900 900 900 900 900
Max. PV Power(kW)
120 per MPPT 120 per MPPT 120 per MPPT 120 per MPPT 120 per MPPT
MPPT Qty
2 3 5/6 8/9/10 10/11/12
MPPT Voltage Range(V)
250~850 250~850 250~850 250~850 250~850
Battery Type
Li-Ion Battery Li-Ion Battery Li-Ion Battery Li-Ion Battery Li-Ion Battery
MPPT Voltage Range(V)
630~900 630~900 630~900 630~900 630~900
