Product Features

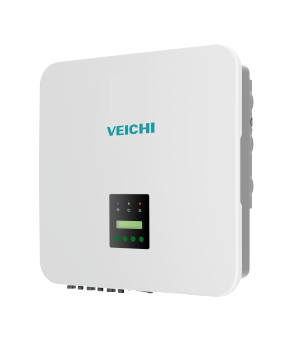

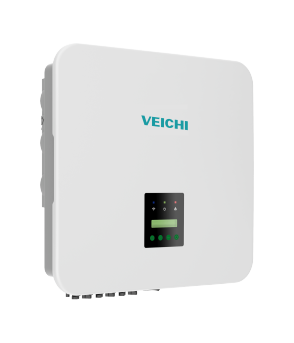

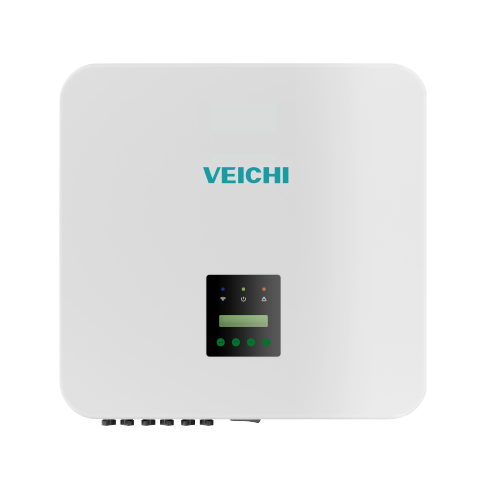

VST-22K-30K-M3 Series 22-30kW Three Phase On-grid Inverter Overview
The VEICHI VST-22K-30K-M3 series three-phase grid-tie inverters, suitable for commercial and industrial applications, come in three power ratings from 22kW to 30kW. High-performance internal components minimize energy loss, achieving up to 98.8% maximum efficiency. With 3 MPPT trackers, a maximum PV input current of 36A, and an MPPT voltage range of 100V–1080V, they support high-power PV modules for longer generation time and higher returns. Multiple grid-tie certifications enable global applicability. The IP66 protection rating, intelligent grounding detection, and lightning protection contribute to the stable development of distributed PV systems.

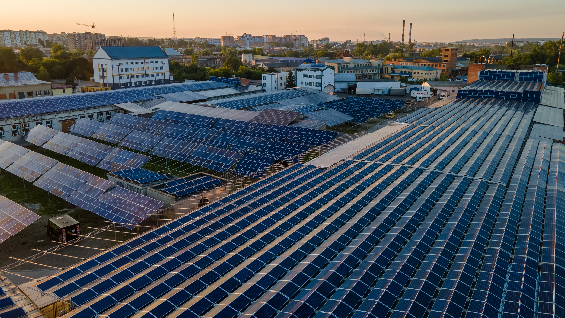

High-Performance On-Grid Inverter
- Maximum MPPT current: 36A, peak efficiency up to 98.8%, delivering higher green energy yield;
- Dual MPPT channels with precise MPPT algorithm for real-time maximum power point tracking;
- Adjustable AC output voltage range 312–520V, compatible with most grid specifications;
- Low startup voltage as low as 50V, extending daily power generation hours；
- Wide MPPT voltage range, offering strong anti-shading capability.

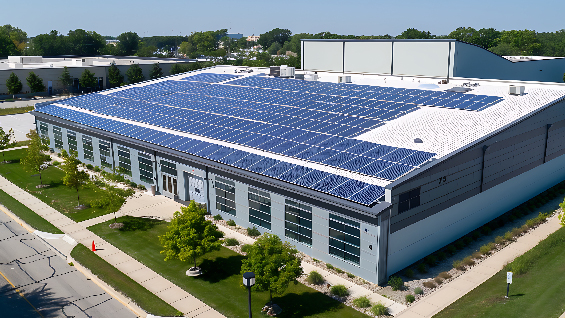

Multiple Features for Worry-Free Operation
- IP66 protection rating, suitable for both indoor and outdoor installation;
- Supports multiple communication options: Wi‑Fi, 4G, Bluetooth, RS485 for real-time monitoring;
- Ground fault detection and built-in lightning protection ensure safe operation;
- Multiple grid‑tie certifications enable deployment in countries worldwide;
- Low-noise design with noise level below 40 dB for unobtrusive operation.
Technical Specifications
...
...
...
Product Model
VST-22K-M3 VST-25K-M3 VST-30K-M3
Max Input Voltage(V)
1100 1100 1100
Max Input Current(A)
36/36/36 36/36/36 36/36/36
MPPT Number
3 3 3
Strings Number Per MPPT
2/2/2 2/2/2 2/2/2
Rated Grid Voltage(V) (L/N/PE)
220/380, 230/400, 240/415, 312~520 220/380, 230/400, 240/415, 312~520 220/380, 230/400, 240/415, 312~520
Start-up/Min Input Voltage(V)
50/40 50/40 50/40
MPPT Voltage Range(V)
100~1080 100~1080 100~1080
