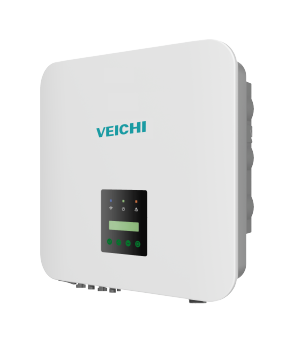

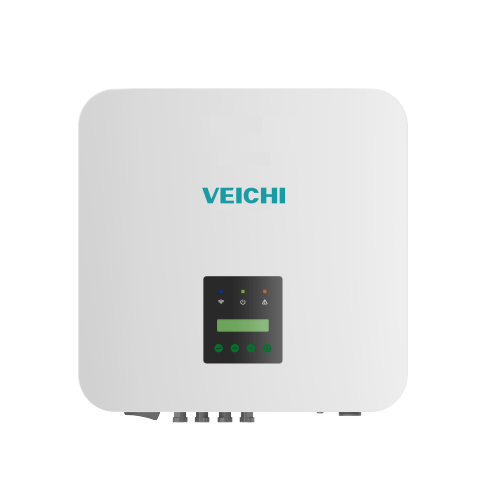

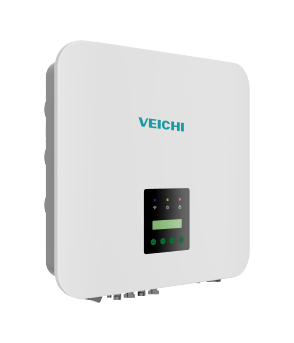

VST-5K-10K-M3 Series 5-10kW Three Phase On-grid Inverter Overview
The VEICHI VST-5K-10K-M3 series three-phase grid-tie inverters, available in four power ratings from 5kW to 10kW, are designed for residential applications. Precise MPPT algorithms reduce energy loss, reaching up to 98.8% maximum efficiency. With 3 MPPT trackers, a maximum PV input current of 18A, and an MPPT voltage range of 100V–1080V, they support high-power PV modules for extended generation time and increased returns. Communication via Wi-Fi, 4G, GPRS, and Bluetooth enables remote monitoring. The IP66 protection rating, along with intelligent grounding detection and lightning protection, ensures reliable operation in harsh environments and safeguards household safety.

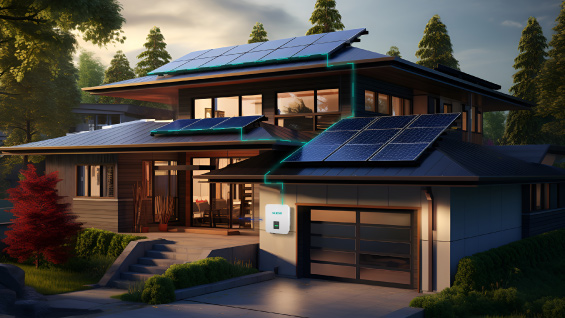

High-Performance On-Grid Inverter
- Maximum MPPT current: 36A, peak efficiency up to 98.8%, delivering higher green energy yield;
- Three MPPTs channels with precise MPPT algorithm for real-time maximum power point tracking;
- Adjustable AC output voltage range 312V–520V, compatible with most grid specifications;
- Low startup voltage as low as 50V, extending daily power generation hours;
- Wide MPPT voltage range, offering strong anti-shading capability.

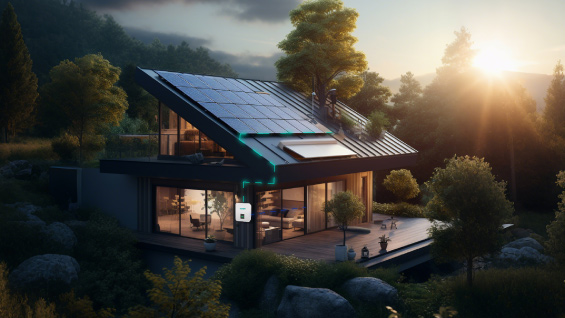

Multiple Features for Worry-Free Operation
- IP66 protection rating, suitable for both indoor and outdoor installation;
- Supports multiple communication options: Wi‑Fi, 4G, Bluetooth, RS485 for real-time monitoring;
- Lightweight and compact design for easy installation;
- Multiple grid‑tie certifications enable deployment in countries worldwide;
- Low-noise design with noise level below 20 dB for unobtrusive operation.
Technical Specifications
...
...
...
Product Model
VST-5K-M3 VST-6K-M3 VST-8K-M3 VST-10K-M3
Max Input Voltage(V)
1100 1100 1100 1100
Max Input Current(A)
18/18/18 18/18/18 18/18/18 18/18/36
MPPT Number
3 3 3 3
Strings Number Per MPPT
1/1/1 1/1/1 1/1/1 1/1/2
Rated Grid Voltage(V) (L/N/PE)
220/380, 230/400, 240/415, 312~520 220/380, 230/400, 240/415, 312~520 220/380, 230/400, 240/415, 312~520 220/380, 230/400, 240/415, 312~520
Start-up/Min Input Voltage(V)
50/40 50/40 50/40 50/40
MPPT Voltage Range(V)
100~1080 100~1080 100~1080 100~1080
