Product Features

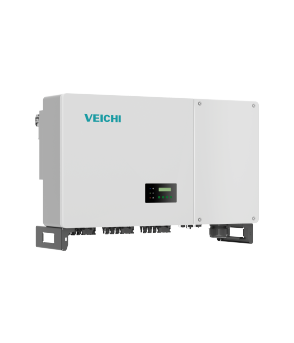

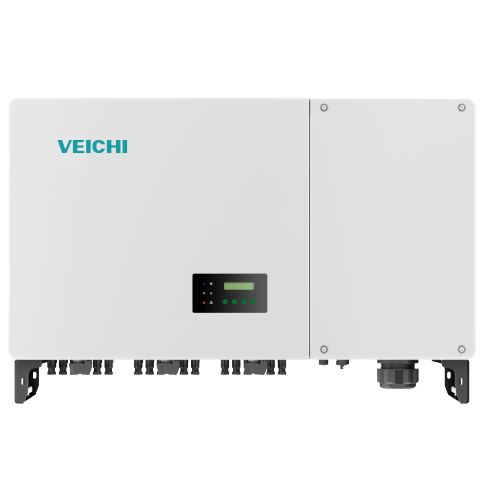

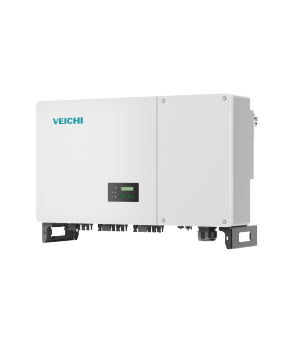

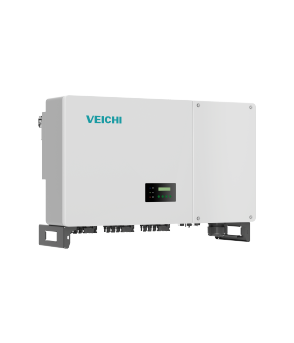

VST-75K-110K Series 75-110kW Three Phase On-grid Inverter Overview
The VEICHI VST-75K-110K series three-phase grid-tie inverters are suitable for various commercial, industrial, and distributed PV plants, offered in four power ratings from 75kW to 110kW to meet diverse project requirements. High-performance internal components minimize energy loss, achieving up to 98.8% maximum efficiency. With up to 9 MPPT trackers, a maximum PV input current of 40A, and an MPPT voltage range of 100V–1080V, they support high-power PV modules for longer generation time and higher returns. Noise level ≤40 dB. Multiple grid-tie certifications ensure global suitability. The IP66 protection rating, intelligent grounding detection, and lightning protection contribute to the stable development of distributed PV.
High-Performance On-Grid Inverter
- Maximum MPPT current: 40A, peak efficiency up to 98.8%, delivering higher green energy yield;
- Up to 9 MPPTs channels with precise MPPT algorithm for real-time maximum power point tracking;
- Adjustable AC output voltage range 312V–520V, compatible with most grid specifications;
- Low startup voltage as low as 50V, extending daily power generation hours;
- Wide MPPT voltage range, offering strong anti-shading capability.
Multiple Features for Worry-Free Operation
- IP66 protection rating, suitable for both indoor and outdoor installation;
- Supports multiple communication options: Wi‑Fi, 4G, Bluetooth, RS485 for real-time monitoring;
- Lightweight and compact design for easy installation;
- Ground fault detection and built-in lightning protection ensure safe operation;
- Low-noise design with noise level below 40 dB for unobtrusive operation.
Technical Specifications
...
...
...
...
Product Model
VST-75K VST-80K VST-90K VST-100K VST-110K
Max Input Voltage(V)
1100 1100 1100 1100 1100
Max Input Current(A)
7*40 7*40 9*40 9*40 9*40
MPPT Number
7 7 9 9 9
Strings Number Per MPPT
2/14 2/14 2/18 2/18 2/18
Rated Grid Voltage(V) (L/N/PE)
220/380, 230/400, 240/415,312~520 220/380, 230/400, 240/415, 312~520 220/380, 230/400, 240/415, 312~520 220/380, 230/400, 240/415, 312~520 220/380, 230/400, 240/415, 312~520
Start-up/Min Input Voltage(V)
50/40 50/40 50/40 50/40 50/40
MPPT Voltage Range(V)
100~1080 100~1080 100~1080 100~1080 100~1080
